m_photoi_mc Module Reference

Module that provides routines for Monte Carlo photoionization. More...

Data Types
type	phmc_tbl_t
	Type to quickly look up absorption lengths from a table. More...

Functions/Subroutines
subroutine, public	phmc_initialize (cfg, is_used)
	Initialize photoionization parameters.
subroutine, public	phmc_print_grid_spacing (dr_base)
	Print the grid spacing used for the absorption of photons.
subroutine, public	phmc_get_table_air (phmc_tbl, p_o2, max_dist)
	Compute the photonization table for air. If the absorption function is f(r), this table contains r as a function of F (the cumulative absorption function, between 0 and 1). Later on a distance can be sampled by drawing a uniform 0,1 random number and finding the corresponding distance. The table constructed up to max_dist; we can ignore photons that fly very far.
real(dp) function, public	phmc_absorption_func_air (dist, p_o2)
	The absorption function for photons in air according to Zheleznyak's model.
subroutine, public	phmc_do_absorption (xyz_in, xyz_out, n_dim, n_photons, tbl, prng)
	Given a list of photon production positions (xyz_in), compute where they end up (xyz_out).
subroutine, public	phmc_set_src (tree, rng, i_src, i_photo, use_cyl, dt)
	Set the source term due to photoionization. At most phmc_num_photons discrete photons are produced.

Variables
logical, public, protected	phmc_physical_photons = .true.
	Whether physical photons are used.
type(phmc_tbl_t), public, protected	phmc_tbl
	Table for photoionization.

Detailed Description

Module that provides routines for Monte Carlo photoionization.

Function/Subroutine Documentation

phmc_absorption_func_air()

real(dp) function, public m_photoi_mc::phmc_absorption_func_air	(	real(dp), intent(in)	dist,
		real(dp), intent(in)	p_o2 )

The absorption function for photons in air according to Zheleznyak's model.

Parameters

[in]	dist	Distance
[in]	p_o2	Partial pressure of oxygen (bar)

Definition at line 228 of file m_photoi_mc.f90.

Here is the call graph for this function:

phmc_do_absorption()

subroutine, public m_photoi_mc::phmc_do_absorption	(	real(dp), dimension(3, n_photons), intent(in)	xyz_in,
		real(dp), dimension(3, n_photons), intent(out)	xyz_out,
		integer, intent(in)	n_dim,
		integer, intent(in)	n_photons,
		type(lt_t), intent(in)	tbl,
		type(prng_t), intent(inout)	prng )

Given a list of photon production positions (xyz_in), compute where they end up (xyz_out).

Parameters

[in]	n_photons	Number of photons
[in]	xyz_in	Input (x,y,z) values
[out]	xyz_out	Output (x,y,z) values
[in]	n_dim	2 or 3 dimensional Lookup table
[in,out]	prng	Random number generator

Definition at line 287 of file m_photoi_mc.f90.

phmc_get_table_air()

subroutine, public m_photoi_mc::phmc_get_table_air	(	type(phmc_tbl_t), intent(inout)	phmc_tbl,
		real(dp), intent(in)	p_o2,
		real(dp), intent(in)	max_dist )

Compute the photonization table for air. If the absorption function is f(r), this table contains r as a function of F (the cumulative absorption function, between 0 and 1). Later on a distance can be sampled by drawing a uniform 0,1 random number and finding the corresponding distance. The table constructed up to max_dist; we can ignore photons that fly very far.

Parameters

[in,out]	phmc_tbl	Partial pressure of oxygen (bar)
[in]	p_o2	Maximum distance in lookup table

Definition at line 122 of file m_photoi_mc.f90.

Here is the call graph for this function:

phmc_initialize()

subroutine, public m_photoi_mc::phmc_initialize	(	type(cfg_t), intent(inout)	cfg,
		logical, intent(in)	is_used )

Initialize photoionization parameters.

Parameters

[in,out]	cfg	The configuration for the simulation
[in]	is_used	Whether Monte Carlo photoionization is used

Definition at line 51 of file m_photoi_mc.f90.

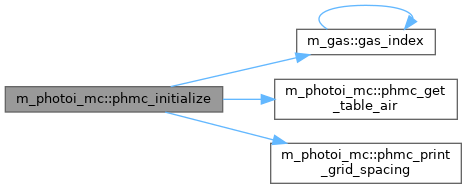

Here is the call graph for this function:

phmc_print_grid_spacing()

subroutine, public m_photoi_mc::phmc_print_grid_spacing

(

real(dp), intent(in)

dr_base

)

Print the grid spacing used for the absorption of photons.

Definition at line 97 of file m_photoi_mc.f90.

phmc_set_src()

subroutine, public m_photoi_mc::phmc_set_src	(	type(af_t), intent(inout)	tree,
		type(rng_t), intent(inout)	rng,
		integer, intent(in)	i_src,
		integer, intent(in)	i_photo,
		logical, intent(in)	use_cyl,
		real(dp), intent(in), optional	dt )

Set the source term due to photoionization. At most phmc_num_photons discrete photons are produced.

Parameters

[in,out]	rng	Random number generator
[in]	i_src	Input variable that contains photon production per cell
[in]	i_photo	Input variable that contains photoionization source rate
[in]	use_cyl	Use cylindrical coordinates (only in 2D)
[in]	dt	Time step, if present use "physical" photons

Definition at line 379 of file m_photoi_mc.f90.

Here is the call graph for this function:

Variable Documentation

phmc_physical_photons

logical, public, protected m_photoi_mc::phmc_physical_photons = .true.

Whether physical photons are used.

Definition at line 19 of file m_photoi_mc.f90.

phmc_tbl

type(phmc_tbl_t), public, protected m_photoi_mc::phmc_tbl

Table for photoionization.

Definition at line 37 of file m_photoi_mc.f90.
